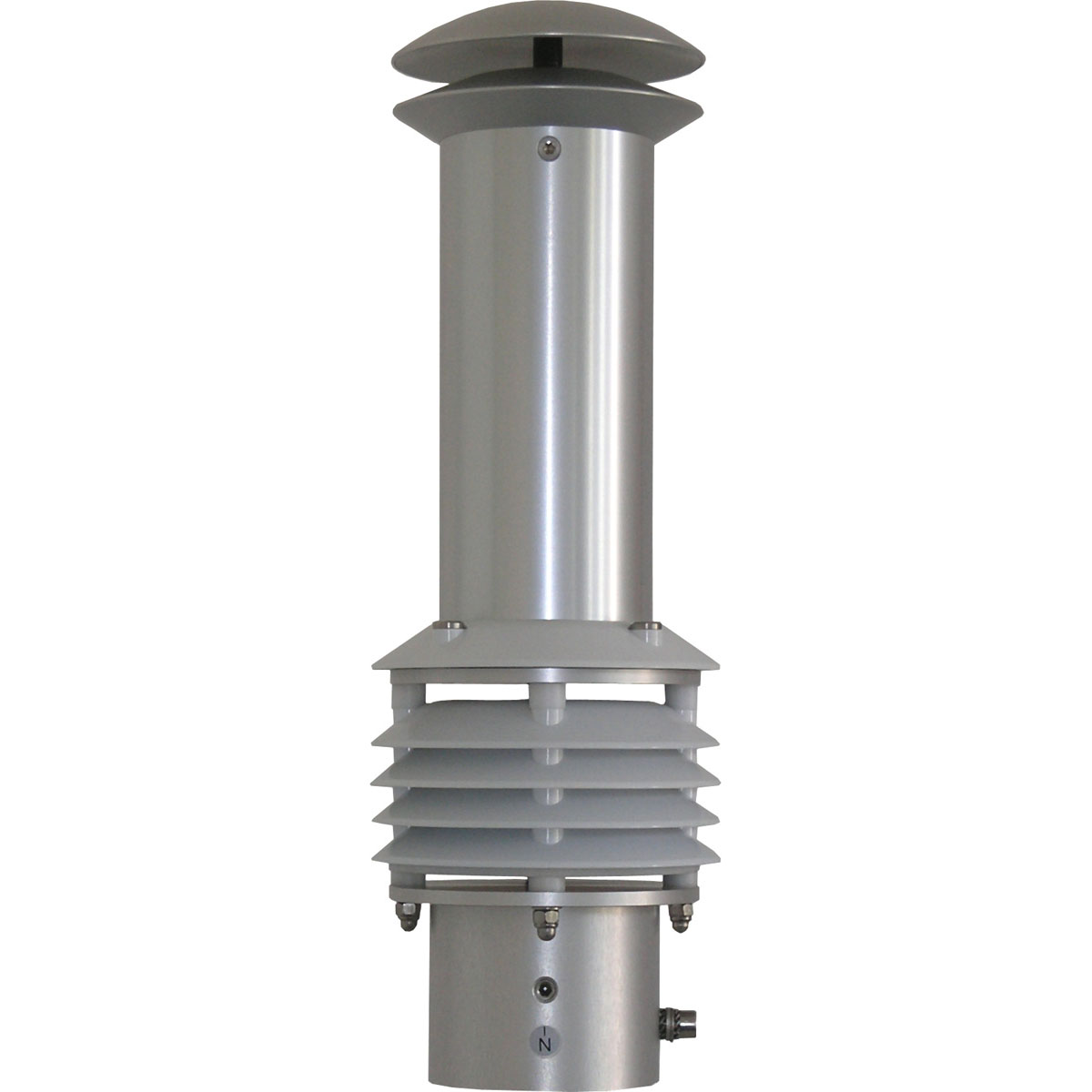

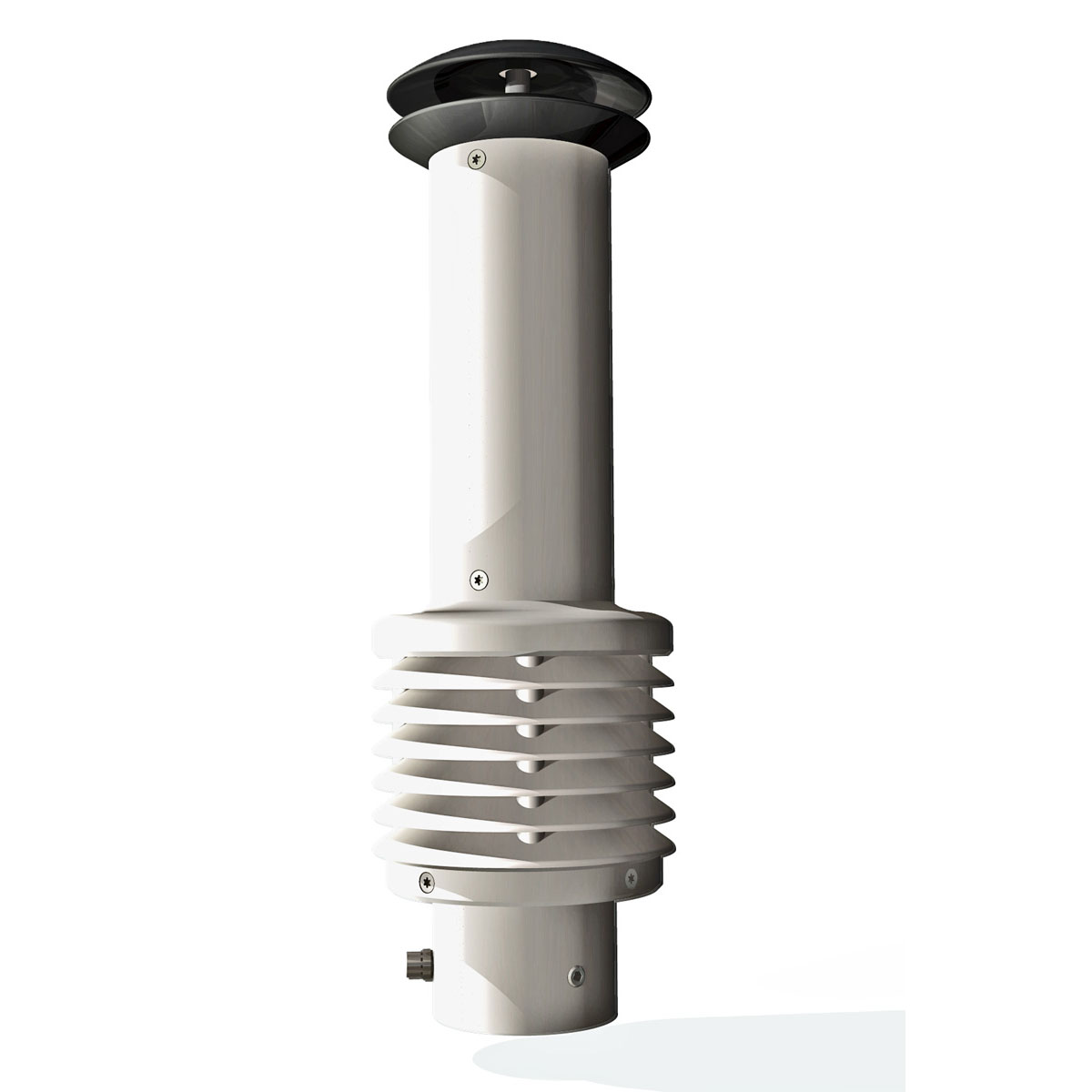

Description Static Weather Sensor | EOLOS-IND Id-No. Static Weather Sensor EOLOS-IND H heated Id-No. 00.16430.010002 Static Weather Sensor EOLOS-IND unheated Id-No. 00.16430.000002 range of application: -30… 70 °C – under non-icing conditions Meas. range wind direction 0…360° Meas. range wind speed 0.1…85 m/s Meas. range air temperature -40… 70 °C Meas. range rel. humidity 0…100 % r. h. Meas. range barometric pressure 600…1100 hPa Accuracy wind direction ± 3° Accuracy wind speed ± 0.5 m/s ± 5 % of meas. value Accuracy air temperature Accuracy rel. humidity ± 0.8 °C (v > 2 m/s) ± 3 % (10…90 %) ± 4 % (0…100 %) Accuracy barometric pressure ± 2 hPa (-30… 70 °C) Resolution wind direction 1° Resolution wind speed 0.1 m/s Resolution air temperature 0.1 °C Resolution rel. humidity 0.5 % r. h. Resolution barometric pressure 0.1 hPa Protocols NMEA 0183 | WIMWV | WIMHU | WIMMB | WIMTA Interface serial, RS 422, talker, baud rate 4800, 1 Hz (meas. cycle of 10 Hz), 8 N 1 Range of application temperature -40… 70 °C heated wind speed 0…100 m/s 0…100 % r. h. Supply voltage 24 VDC (-22 %/ 34 %) max. 2.5 A heating: 24 VDC/ 70 W (max. 3 A) electr. controlled Dimensions H 382 mm Ø 120 mm mast adapter Ø 50 mm for mounting on standard pipe Housing aluminium anodised IP 66 Weight approx. 2.5 kg Options (order separately) Indicator unit e.g. (14742) METEO-LCD Data logger e.g. SYNMET-LOG or met[LOG] Mast and power supply unit Visualisation and evaluation software MeteoWare-CS3 Accessories (order separately) 32.16420.066100 Cable 10 m 12-pole bayonet plug ready-for-use Static Weather Sensor | EOLOS-IND
