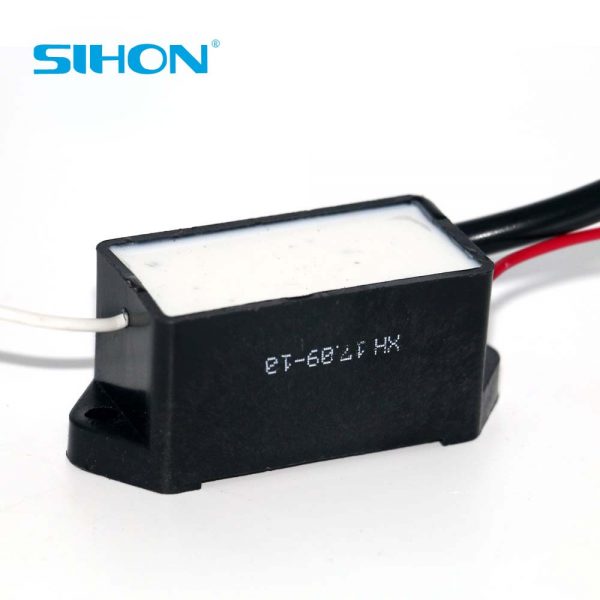

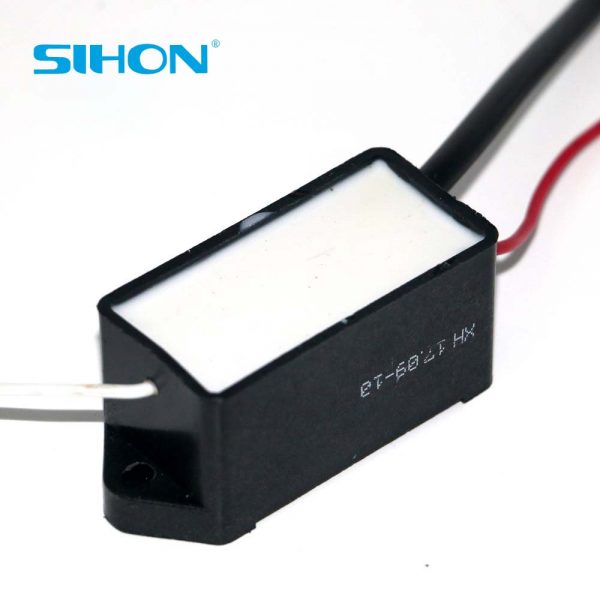

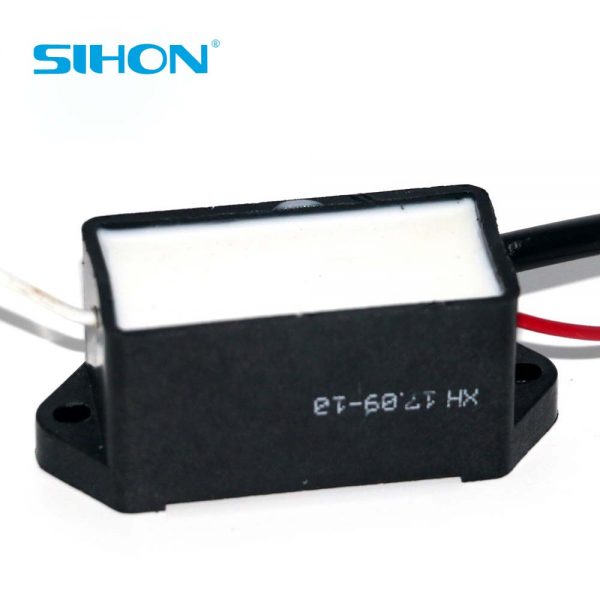

1. Outline drawing 1) Layman size: 60.5㎜*30.5㎜*30.5㎜ 2) Length of power input cable (white): 230mm; length of red and black cable: 220mm 3) High voltage output line, length 330mm; black line length: 235mm 2. Electrical parameters: 1) Input voltage: DC6V Working current: 2.0~3A; 2) Ignition distance: 6mm, output voltage: 30KV MAX; 3) Continuous ignition time: 30min; 4) Weight: 120G 5) Operating voltage range: DC 5.2V~6.8V. 6) The continuous working time is not less than 30min when the rated voltage is 3V, and the continuous working time is not less than 25min when the rated voltage is 5.2V~5.9V and 6.1V~6.8V. 7) The working environment temperature is 5℃~45℃, and the non-working environment temperature is 95℃. https://www.cnxhe.com/wp-content/uploads/2022/01/6V烟雾机点火高压包.mp4 Why choose us? Our company is a company with 20 years of production and sales experience Products are strictly in accordance with ISO99001, CE, and RoHS standards. We are also an Alibaba certified factory. Have SGS certification Our products sell very well in the South American and European markets. The most important thing is that our price is the most favorable. More new gravitational prices, better quality products. I believe that’s what you want.
