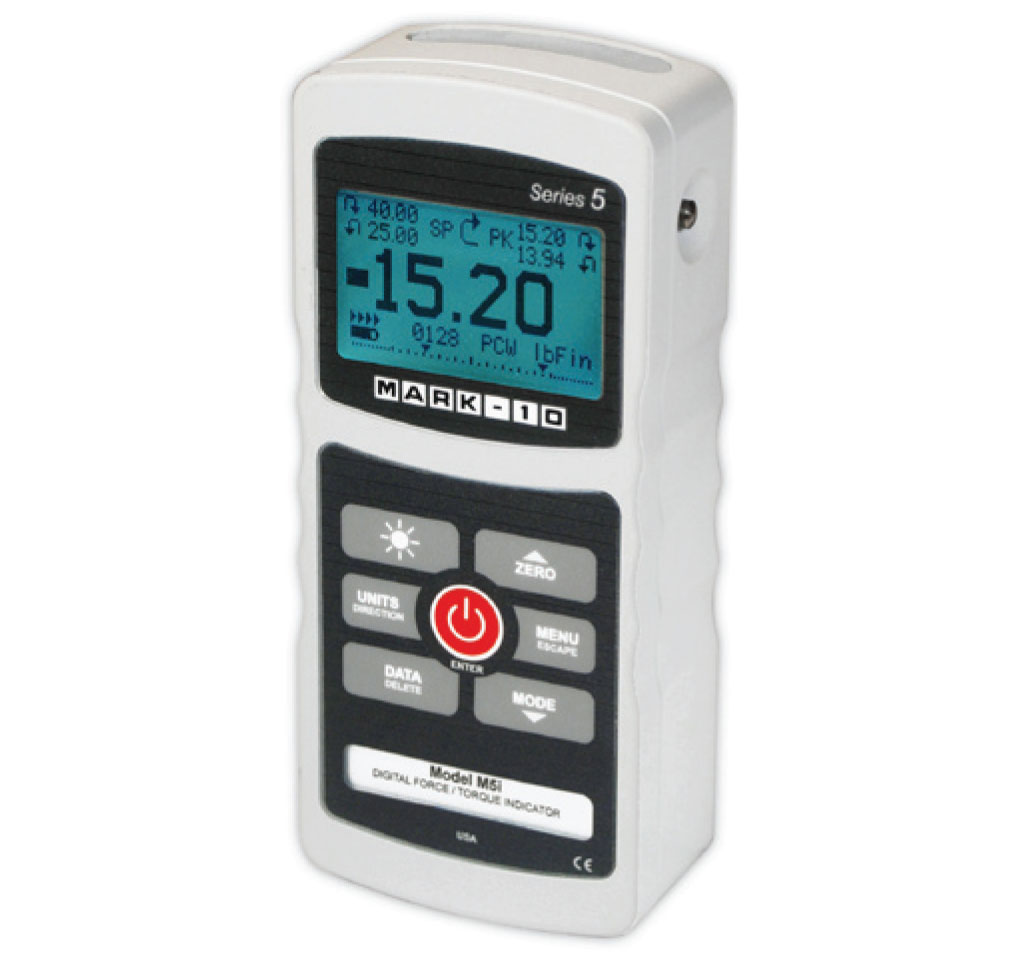

Model 5i, Model 5i – Advanced Force/Torque Indicator

Description The 5i advanced digital force/torque indicator is designed to work with a wide range of remote foce and torque sensors. With exclusive Plug & Test (TM) technology, all calibration and configuration data is saved within the sensor’s smart connector, not the indicator, allowing for tru interchangeability. In addition, all sensors are fully compatible with the more basic 3i force/torque indicator. interchangeable force and torque sensors through Plug & Test (TM) technology high-speed 7,000 Hz sampling rate 1,000 point data memory with statistics and outputs averaging mode – calculates average readings over time Specifications Channels 1 Temp. Range 60 to 110 ° F Power AC or Rechargeable Battery Peak/Valley Hold Standard Hi/Lo Limits Standard Tare 100 % Output 0-1 Vdc Input personality module only Calibration push button, automatic Display 4/12 Digits Maximum Display 19999 Bridge Resistance 350 ohms Sampling Rate 7,000 Hz, pulse response of 1/3,500 sec. minimum per second Weight – lbs 0.9 Capacity – lb. Reads Eng Units of lb, kg, N, in-oz, in-lb, kgmm & Ncm Resolution Depends on Force Range Accuracy ±0.1% of full scale ±1 digit sensor Accessory Items AC1019, Air connection kit for G1046 ($150.00)G1001, Wire Terminal Grips, 0 – 0.125″ opening, 5/16-18F ($230.00)G1001-1, Wire Terminal Grips, 0.125 – 0.25″ opening, #10-32F ($230.00)G1001-2, Wire Terminal Grips, 0.25 – 0.375″ opening, #10-32F ($230.00)G1002, Dual roller grip, 0-0.25″ opening, #10-32F ($180.00)G1003, Miniature component grip, #10-32F ($140.00)G1008, Film and Paper Grips, 1″ wide, #10-32F ($250.00)G1009, Compression plate, 2” dia., #10-32F ($40.00)G1009-1, Compression plate, 3” dia., 5/16-18F ($75.00)G1010, Pin vise, 0.062″-0.375″ dia., #10-32F ($100.00)G1011, Rubber tip, #10-32F ($30.00)G1013, Parallel jaw grip, 5/16-18F ($190.00)G1015-1, Film and Paper Grips, 3″ wide, #10-32F ($310.00)G1015-2, Film and Paper Grips, 5″ wide, #10-32F ($330.00)G1015-3, Film and Paper Grips, 7″ wide, #10-32F ($350.00)G1018-1, Swivel adapter, #10-32M to #10-32F ($65.00)G1018-2, Swivel adapter, 5/16-18M to 5/16-18F ($65.00)G1019, Padded attachment, square, 5/16-18F ($40.00)G1020, Padded attachment, rectangular, 5/16-18F ($60.00)G1021, Padded attachment, curved, 5/16-18F ($80.00)G1022-1, Jacobs chuck grip for TST-Series stands, 0.028”-0.25” dia. ($180.00)G1022-2, Jacobs chuck grip for TST-Series stands, 0.062”-0.375” dia. ($200.00)G1022-3, Jacobs chuck grip for TST-Series stands, 0.078”-0.5” dia. ($220.00)G1023, Bottle grip for TST-Series stands, 0.050”-6.000” dia. ($500.00)G1024, Extension rod, 5” long, #10-32M/F ($20.00)G1024-1, Extension rod, 2” long, #10-32M/F ($20.00)G1024-2, Extension rod, 1” long, #10-32M/F ($20.00)G1025, Chisel point, #10-32F ($20.00)G1026, Cone point, #10-32F ($20.00)G1027, V-groove, #10-32F ($20.00)G1028, Hook, small, #10-32F ($20.00)G1029, Flat head, #10-32F ($20.00)G1030, Adapter, 5/16-18M to #10-32F ($20.00)G1031, Extension rod, 5” long, 5/16-18M/F ($25.00)G1031-1, Extension rod, 2” long, 5/16-18M/F ($25.00)G1031-2, Extension rod, 1” long, 5/16-18M/F ($25.00)G1032, Chisel point, 5/16-18F ($25.00)G1033, Cone point, 5/16-18F ($25.00)G1034, V-groove, 5/16-18F ($25.00)G1035, Hook, large, 5/16-18M ($25.00)G1036, Flat head, 5/16-18F ($25.00)G1037, Coupling, 5/16-18F/F ($20.00)G1038, Hook, medium, #10-32M ($15.00)G1039, Coupling, #10-32F/F ($15.00)G1040, Adapter, 5/16-18M to 5/16-18M ($20.00)G1041, Adapter, 5/16-18M to 1/2-20M ($20.00)G1042, Hook, extra large, 1/2-20M ($30.00)G1044, Adapter plate for TSF/TST, 1/2-20F ($50.00)G1045, 90° peel fixture ($1,200.00)G1045-1, Limit Switch for G1045 ($200.00)G1046, Pneumatic grip, #10-32F ($600.00)G1047, Adapter, #10-32M to M4F ($20.00)G1048, Adapter, M4M to #10-32F ($20.00)G1049, Adapter, M6M to 5/16-18F ($20.00)G1050, Adapter, #4-40M to #10-32F ($20.00)G1051, Adapter, #4-40M to #10-32M ($20.00)G1053, Universal V-Jaw grip, 0.65”-1.55” dia., Hex / #10-32F ($325.00)G1054, Adapter, #10-32F to M6M ($20.00)G1056, Multi-jaw grip, #10-32 ($295.00)G1057, Adapter, M6F to #10-32F ($20.00)G1058, Cap grip, 3.5″ dia., Hex / #10-32F ($395.00)G1059, Adapter, 5/16-18F to 1/2-20F ($20.00)G1060, Adapter, #10-32M to #10-32M ($20.00)G1061, Wedge grip, 0.75″ jaw width, 5/16-18F ($495.00)G1061-1, Wedge grip, 0.375″ jaw width, 5/16-18F ($445.00)G1061-2, Wedge grip, 1″ jaw width, 1/2-20F ($545.00)G1062, Miniature wedge grip, #10-32F ($240.00)G1066, Adapter, 5/16-18F to 1/2-20M ($20.00)G1070, Vise grip, self-centering ($525.00)G1071, Score bend fixture set ($450.00)G1072, Opening force fixture set ($400.00)G1074, Vise grip, standard ($295.00)G1076, Turret Style Wire Terminal Grips ($350.00)G1077, Clevis Grips ($120.00)G1078, Miniature Filament Grips ($250.00)G1085, Adjustable Dual Roller Grips ($395.00)G1086, Coefficient of Friction Fixtures ($1,500.00)G1087, High Capacity Compression Plates ($210.00)G1087-1, High Capacity Compression Plates ($100.00)G1089, Syringe Compression Fixtures ($950.00)G1090, High Capacity Clevis Grips ($325.00)G1092, High Capacity Wire/Rope Grips ($795.00)G1093, High Capacity Wire Terminal Grips ($1,350.00)G1094, High Capacity Eccentric Roller Grips ($950.00) Power Plug 110V (US)220V (Australia)220V (Europe)220V (UK)
