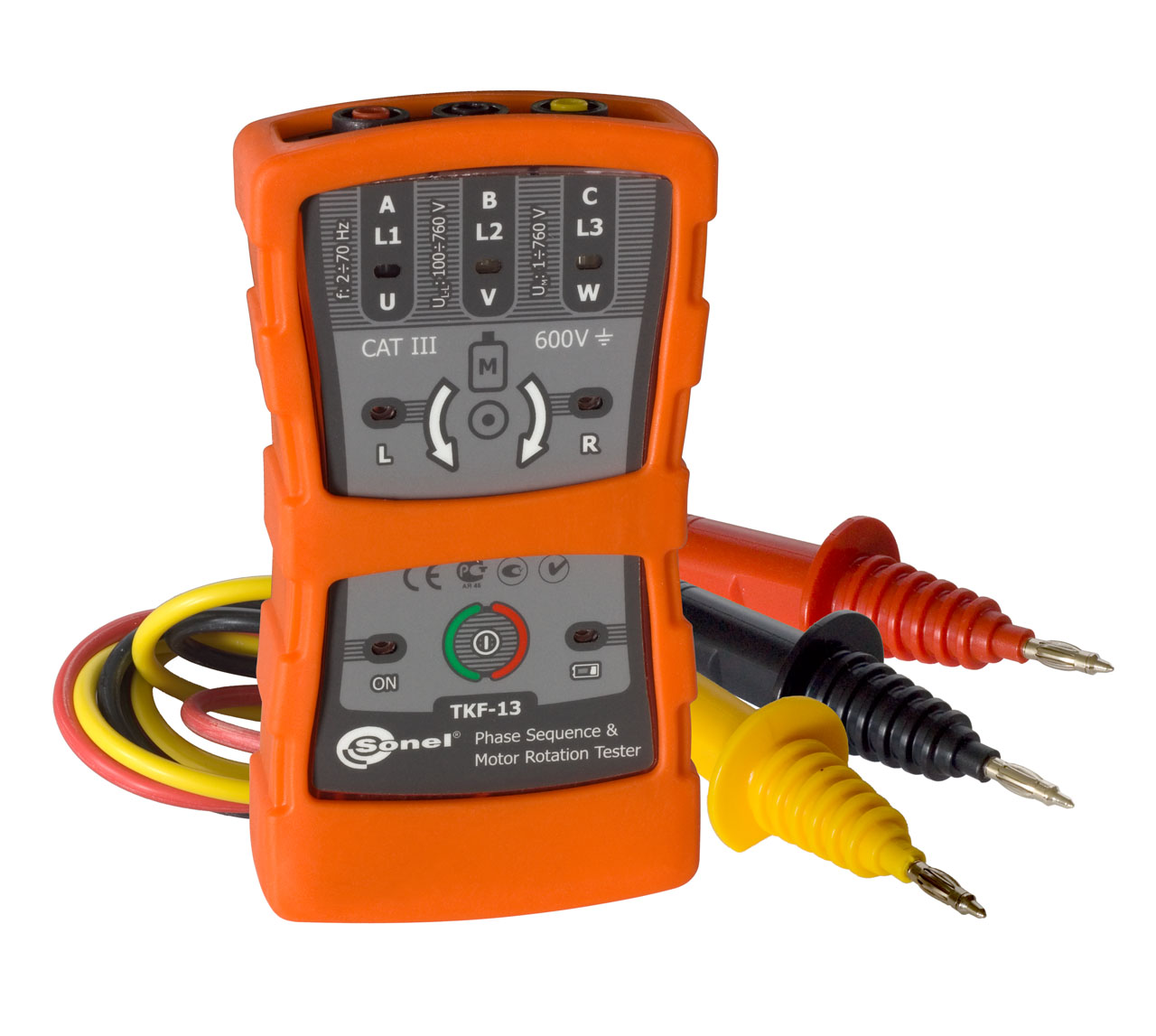

Description Phase Sequence and Motor Rotation Tester TKF-13 Phase sequence indication (direction of field rotation) in the power network with rated phase-to-phase voltage (120…690 V AC) by LED signalisation. Operation in the power network with frequency 2…70Hz. Indication of the voltage presence in the particular phase by means of neon lamps. Indication of direction of motor rotation: under state without voltage with using the test leads remote, during motor operation detection of magnetic field presence AUTO-OFF function Electric security: Type of insulation: double, according to EN 61010-1 Measurement category: CAT III 600V acc. to EN 61010-1 Protection class acc. to EN 60529: IP42 Rated operation conditions: rated phase-to-phase voltage range: 120… 690 V AC Maximum operation phase-to-phase voltage: 760 V AC EMF motors voltage range: 1…760 V AC Frequency range: 2…70 Hz Operating temperature: -10… 45°C Storage temperature: -20… 60°C Other Technical data: Power supply: alkaline battery 6LR61 (9V) Dimensions: 130 x 70 x 35 mm Weight: 250g Diode flashing time of battery state: approx. 1 s Function auto-off: 5 min Phase Sequence and Motor Rotation Tester TKF-13
